Understanding the 88E1543-A1-LKJ2C000 and Common Issues

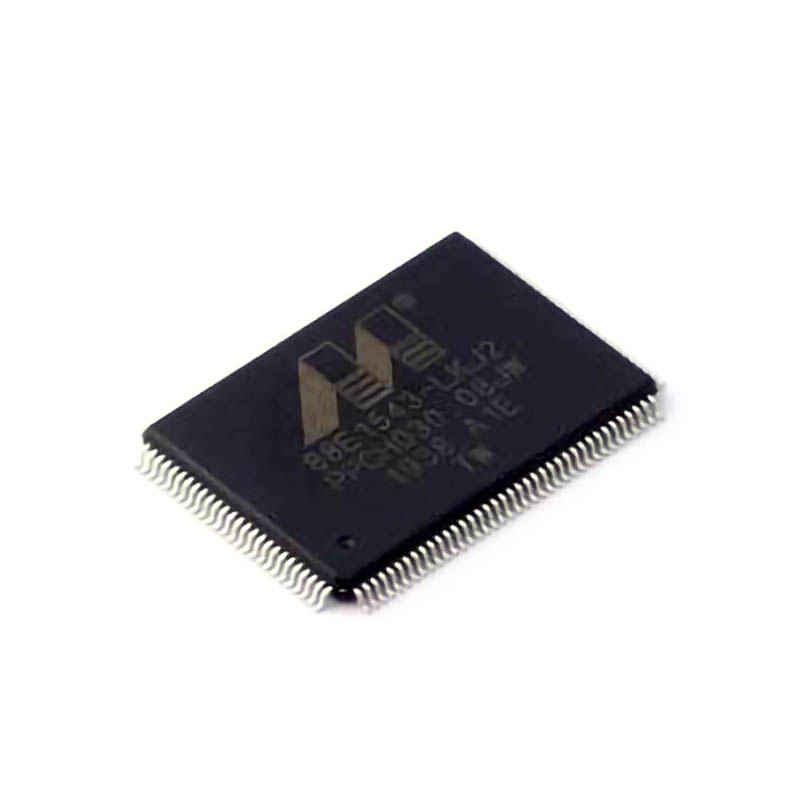

The 88E1543-A1-LKJ2C000 is a widely used Ethernet controller designed to provide reliable network connectivity for various devices, from desktop PCs to industrial machines. However, like any complex piece of technology, it can sometimes encounter issues that disrupt its performance. Troubleshooting these problems efficiently requires a systematic approach to identify the root cause, be it hardware failure, software incompatibilities, or network configuration errors.
1.1 Initial Check: Hardware Connections
The first step in troubleshooting any network device is ensuring that all hardware connections are properly established. With the 88E1543-A1-LKJ2C000, this means checking the Ethernet cable, the port on the router or switch, and the device’s network interface .
Ethernet Cable: A faulty or worn-out Ethernet cable can be one of the most common culprits behind poor connectivity. Ensure that the cable is properly plugged in and check for visible damage. Testing the cable with a different device can help eliminate the possibility of a cable issue.
Network Port: Sometimes, the issue lies in the Ethernet port on the router or device. Try plugging the cable into a different port on the router or switch to rule out a defective port.
Device Interface: Check whether the Ethernet port on your device (e.g., PC or embedded system) is functioning properly. Look for any physical damage or visible signs of wear that could affect performance.
1.2 Software Configuration Issues
Once the hardware is confirmed to be functioning correctly, it’s time to look at the software configuration. This involves checking your device’s driver, IP settings, and other relevant network configurations.
Driver Issues: Outdated or corrupted drivers are often the cause of connectivity issues. If the 88E1543-A1-LKJ2C000 is not working as expected, the first step is to verify that the correct drivers are installed. Visit the manufacturer’s website or use a driver update utility to ensure you’re running the latest version.
IP Address Conflicts: IP address conflicts are common when multiple devices on the same network share the same IP address. This can cause network issues, including an inability to connect to the internet. Ensure that the 88E1543-A1-LKJ2C000 is set to receive an IP address automatically (DHCP) or assign a unique static IP if needed.
Network Configuration: Incorrect network settings such as incorrect subnet masks, gateway configurations, or DNS server settings can result in connectivity problems. Double-check the network settings in your operating system’s network configuration menu to ensure everything is correctly set up.
1.3 Power Management Issues
Another common issue that users face with the 88E1543-A1-LKJ2C000 is related to power management settings, particularly in laptop or mobile devices. Many modern operating systems include power-saving features that can disable the Ethernet adapter or reduce its performance under certain circumstances.
Power Saving Mode: In Windows, for instance, the power management settings in Device Manager can sometimes turn off the Ethernet adapter to save power. Go to Device Manager, find the 88E1543-A1-LKJ2C000 network adapter, and uncheck the option to allow the computer to turn off this device to save power.
BIOS Settings: In some cases, the issue could be rooted in the system BIOS. Make sure that the Ethernet port is enabled and that there are no conflicting settings that might disable or limit the functionality of the network adapter.
1.4 Network Adapter Conflicts
Conflicts with other network adapters or software could also cause issues with the 88E1543-A1-LKJ2C000. For instance, if you have multiple network adapters installed (e.g., Wi-Fi and Ethernet), there might be a conflict between them, causing connectivity issues.
Disable Unnecessary Adapters: Disable any unused or unnecessary network adapters to eliminate potential conflicts. This is particularly important when troubleshooting Ethernet connectivity issues.
Check for VPN or Proxy Conflicts: VPN software or proxy configurations might interfere with the Ethernet adapter’s normal operation. If you're using a VPN or proxy, disable it temporarily to see if this resolves the issue.
Advanced Troubleshooting and Solutions
After addressing the basic troubleshooting steps, more advanced methods may be necessary to resolve persistent problems with the 88E1543-A1-LKJ2C000. These methods include resetting the hardware, upgrading firmware, and utilizing network diagnostic tools.
2.1 Resetting the Network Adapter
Sometimes, simply resetting the Ethernet controller can resolve lingering connectivity issues. This can be done either through the device’s operating system or by physically rebooting the device.
Resetting via Device Manager: In Windows, open Device Manager, right-click on the 88E1543-A1-LKJ2C000 adapter, and select “Disable.” Wait for a few seconds, then right-click again and choose “Enable.” This will reset the network adapter and might resolve minor configuration issues.
Hardware Reset: If the software reset doesn’t work, you may need to perform a full hardware reset. Power off the device, unplug any cables, and leave the device powered off for a minute or two. Then, reconnect everything and restart the device.
2.2 Firmware and BIOS Updates
If your 88E1543-A1-LKJ2C000 continues to have connectivity issues, the next step is to check if there are any firmware or BIOS updates available for your device. Manufacturers frequently release updates to improve performance, fix bugs, and address compatibility issues.
Updating Firmware: Check the manufacturer’s website for the latest firmware update for your network adapter. Updating the firmware can help resolve issues that are related to hardware functionality.
BIOS Update: Similarly, if you are using an embedded system or a device with an integrated network controller, updating the BIOS might be necessary. Visit the manufacturer’s website for instructions on how to update the BIOS safely.
2.3 Diagnosing with Network Tools
For more complex network issues, you might need to use advanced diagnostic tools to pinpoint the source of the problem. There are several network diagnostic utilities available that can help analyze network traffic, check the health of your Ethernet connection, and identify potential bottlenecks.
Ping and Traceroute: The basic diagnostic tools built into most operating systems (such as the "ping" and "tracert" commands in Windows) can help determine if your device is able to communicate with other devices on the network or the internet. These tools can identify packet loss, network congestion, or misconfigurations.
Ethernet Cable Testers: If you suspect that the Ethernet cable is causing the issue, consider using an Ethernet cable tester. These devices can quickly check for open circuits, short circuits, and other wiring problems that might affect connectivity.
Wireshark: Wireshark is a powerful tool for analyzing network packets. It allows you to capture and inspect network traffic, helping identify any anomalies or issues that might be impacting the performance of the 88E1543-A1-LKJ2C000 Ethernet controller.
2.4 Replacing the 88E1543-A1-LKJ2C000
If all else fails and the 88E1543-A1-LKJ2C000 continues to exhibit persistent connectivity issues, it may be a sign of a hardware failure. In such cases, replacing the Ethernet controller could be the most effective solution. Before replacing the device, however, ensure that the problem is not related to other factors such as the motherboard or power supply.
Consult Manufacturer Support: If your 88E1543-A1-LKJ2C000 is still under warranty, consider contacting the manufacturer for support or a replacement. They may offer additional diagnostic steps or an exchange if the device is faulty.
Conclusion
In conclusion, troubleshooting the 88E1543-A1-LKJ2C000 Ethernet controller requires a combination of hardware and software checks, as well as the use of advanced diagnostic tools. By following the steps outlined in this guide, you can identify and resolve common network issues, ensuring that your Ethernet connection is fast, stable, and reliable. Whether you are a home user or a network administrator, these troubleshooting techniques will help you get the most out of your Ethernet hardware.
