Understanding the XL4015E1 and Common Issues
The XL4015E1 is a high-performance buck converter that is widely used in both hobbyist and professional electronics projects. Its versatility and efficiency make it an attractive choice for users who require reliable DC-DC conversion. However, like any electronic component, users may occasionally encounter issues with the XL4015E1. This first part will cover an overview of the XL4015E1, including common problems, and troubleshooting strategies to address them.
What is the XL4015E1?

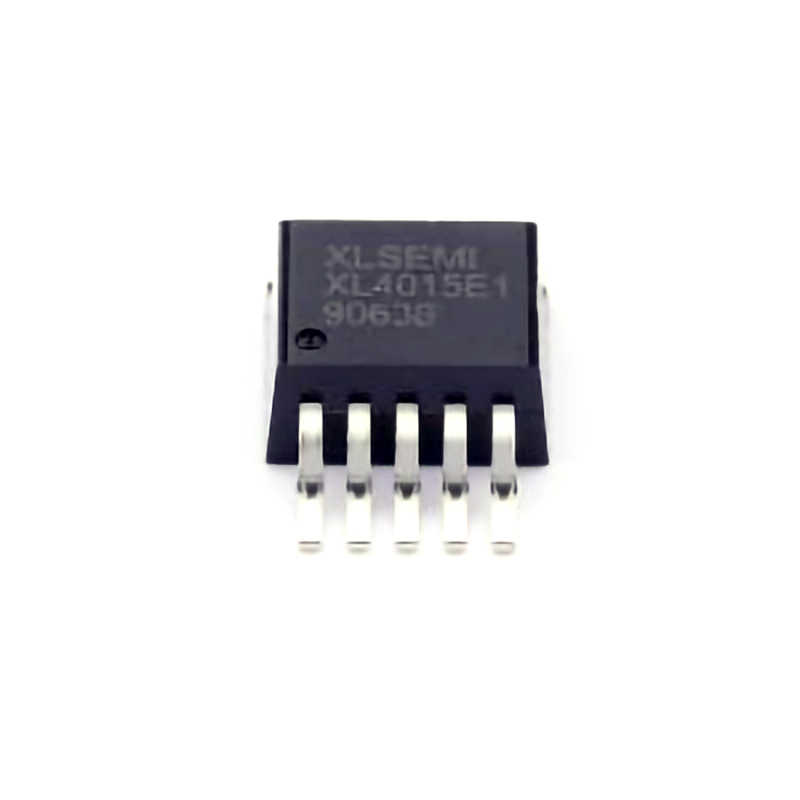

The XL4015E1 is a high-efficiency, step-down (buck) voltage regulator designed to convert a higher DC voltage to a lower, stable DC output voltage. It is based on the XL4015 integrated circuit, and its primary function is to step down input voltages ranging from 4.5V to 38V to output voltages between 1.25V and 36V, making it ideal for Power ing microcontrollers, sensors, motors, and other components in electronics projects.
With a high current output capability (up to 5A), the XL4015E1 is suited for applications where moderate-to-high power conversion is required, such as battery-powered devices, LED drivers, and power supplies for embedded systems. It is often praised for its compact design, ease of use, and cost-effectiveness.
Common Issues with the XL4015E1
Despite its many advantages, users can encounter issues when using the XL4015E1. These issues can arise from various factors, such as incorrect wiring, faulty components, or improper configuration. Let’s explore some of the most common problems users may face when using the XL4015E1.
1. Output Voltage Not as Expected
One of the most common problems users face with the XL4015E1 is incorrect or fluctuating output voltage. This can occur for several reasons, including:
Incorrect Adjustment of the Potentiometer: The output voltage of the XL4015E1 is typically set by adjusting a small potentiometer on the module . If this adjustment is not done correctly, the output voltage may be too high or too low for your application.
Input Voltage Below Minimum Requirement: If the input voltage is too low, the buck converter will not be able to maintain a stable output voltage, leading to under-voltage at the output. The XL4015E1 requires an input voltage higher than the desired output voltage for proper operation.
Loose Connections or Faulty Wiring: Poor connections or broken wires can cause intermittent or fluctuating output voltage. Always double-check all wiring and ensure a solid connection for reliable performance.
2. Overheating
Overheating is another issue that may occur when using the XL4015E1, especially when it is required to provide high current output. The converter's internal components, such as the inductor and the switch transistor , can generate heat when they are under heavy load. If the module is not properly heatsinked or ventilated, it may overheat, causing the system to shut down or perform poorly.
3. Inconsistent Output (Ripple and Noise)
Another potential issue with the XL4015E1 is output voltage ripple and noise. This can lead to undesirable effects on sensitive circuits or components that require stable power. High ripple can be caused by poor filtering, insufficient capacitance, or the use of suboptimal components.
4. Input Power Supply Problems
Sometimes, the issue may lie with the input power supply itself. If the input power source is unstable, unregulated, or noisy, the XL4015E1 may struggle to maintain a stable output. The power supply should always meet the minimum input voltage requirement (typically around 4.5V to 38V) and be capable of supplying enough current for the load.
Troubleshooting Steps for the XL4015E1
To troubleshoot these common issues with the XL4015E1, follow the steps below:
1. Check the Input Voltage
Ensure that the input voltage is within the recommended range. If the input voltage is too low, the XL4015E1 may not operate correctly, leading to an unstable or low output voltage. Use a multimeter to verify the input voltage at the module's input pins.
2. Inspect Wiring and Connections
Loose or poorly connected wires are one of the most common causes of problems in DC-DC converters. Verify that all wires are securely connected and that there are no broken connections. Pay particular attention to the power input and output connections.
3. Adjust the Output Voltage
If the output voltage is not correct, try adjusting the potentiometer. Use a precision multimeter to monitor the output voltage as you adjust the potentiometer. Ensure that the output voltage is within the desired range for your application.
4. Check for Overheating
If the module is overheating, try reducing the output current demand or adding heat sinks to the power components. Proper ventilation is also essential to keep the module cool. If you are driving high-power loads, consider adding additional cooling methods, such as a fan or heat dissipation pads.
5. Inspect capacitor s for Quality and Value
Ensure that the capacitors used in the circuit have sufficient ratings for your application. Low-quality or improperly rated capacitors can lead to ripple or instability in the output voltage. Additionally, make sure the output and input capacitors are installed in the correct orientation.
Advanced Troubleshooting and Solutions for XL4015E1
In the second part of this article, we will explore more advanced troubleshooting techniques and solutions for issues that may arise with the XL4015E1. These solutions are designed to help users who may be dealing with more complex or persistent problems.
Advanced Troubleshooting for XL4015E1
If basic troubleshooting methods do not resolve your issue, you may need to use more advanced techniques to diagnose the problem with the XL4015E1. Here are several steps that can help you further troubleshoot and resolve complex issues.
1. Check the Switch Transistor and Diode
The XL4015E1 relies on a switch-mode power supply topology to efficiently step down the voltage. The internal switch transistor and the diode (usually a Schottky diode) play crucial roles in this process. If either of these components is faulty, it can cause issues with the output voltage or even complete failure of the converter.
You can use a multimeter to check for continuity and proper operation of the switch transistor and the diode. If there is any sign of malfunction, replacing these components may be necessary. Additionally, check for any signs of thermal damage to these components, as excessive heat could be a symptom of a faulty part.
2. Inspect the Inductor
The inductor in the XL4015E1 is responsible for energy storage and transfer during the conversion process. A damaged or incorrectly rated inductor can lead to unstable voltage, excessive ripple, or poor efficiency.
Use an LCR meter to check the inductance of the inductor. If the value is significantly off, consider replacing it with a suitable component. Also, verify that the inductor is not physically damaged or shorted.
3. Verify Feedback Loop Stability
The XL4015E1 uses a feedback loop to regulate the output voltage. If there is an issue with the feedback circuit, the output voltage may be unstable or fluctuate. To diagnose feedback-related issues, check the feedback resistors and ensure they are within the specified tolerance. You can also inspect the feedback pin of the IC to ensure proper operation.
4. Use an Oscilloscope to Diagnose Ripple and Noise
If you are experiencing output voltage ripple or noise, an oscilloscope can be a useful tool for diagnosing the problem. By measuring the waveform of the output voltage, you can identify the frequency and amplitude of the ripple. This can help you pinpoint whether the issue is related to inadequate filtering or a problem with the internal switching components.
To reduce ripple, consider increasing the size of the input and output capacitors or switching to low ESR (Equivalent Series Resistance ) capacitors. Additionally, you may need to check the layout of the circuit to minimize noise pickup.
5. Consider EMI (Electromagnetic Interference) Mitigation
In some cases, the XL4015E1 may be generating electromagnetic interference (EMI), which can disrupt other nearby sensitive circuits. If you suspect EMI issues, try adding ferrite beads or inductors to the input and output lines to suppress high-frequency noise. Additionally, proper grounding and shielding of the circuit can help mitigate EMI effects.
Solutions for Persistent Issues
If you have tried all the basic and advanced troubleshooting steps and the problem persists, here are a few additional solutions to consider:
1. Replace the XL4015E1 Module
In rare cases, the XL4015E1 itself may be defective. If none of the troubleshooting steps have resolved the issue, consider replacing the module with a new one. Sometimes, manufacturing defects or damage during installation can result in an unusable module.
2. Upgrade to a Higher-Performance DC-DC Converter
If the XL4015E1 continues to cause problems, and you require higher performance or more advanced features, consider upgrading to a more robust DC-DC converter, such as the LM2596 or MP1584 . These converters offer higher efficiency, better ripple performance, and may have more advanced features like adjustable current limiting or improved thermal management.
Conclusion
The XL4015E1 is an excellent choice for many DIY electronics projects, but like any component, it can experience issues from time to time. By understanding the common problems and implementing the troubleshooting techniques outlined in this article, you can keep your XL4015E1 running smoothly and ensure that your projects continue to work as intended. From adjusting the output voltage to replacing faulty components, there are multiple ways to address and resolve any issues that may arise.
By following these guidelines and using proper testing and diagnostic tools, you can enhance the reliability of your XL4015E1-based projects and continue to enjoy seamless, efficient power conversion.
